    Fruit Cold Room Cooling Unit Cold Room Chiller Unit 415V/3P/50Hz

    Ask Lasest Price
    Brand Name : Ourfuture
    Model Number : OBBL4-380M
    Certification : ISO 9001:2008, CE, CCC, QS
    Price : nigotiation
    Supply Ability : 100 units per month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Fruit Cold Room Cooling Unit Cold Room Chiller Unit 415V/3P/50Hz

    1. We have hight effciency oil separation system, when the unit is on, there's no need to use lubracation, the standard oil temperature heater , oil temperature controller and oil level controller can make sure a perfect running.
    2. We produce our compressor racks with world famous components and the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.
    3. Each compressor rack is equipped with PLC controller, it can automatically decide how many compressors to be used according to the actual need, even the running time between all compressors, so that the electricity can be saved, also the compressors can have 30% more use life compared with single compressor condensing unit.

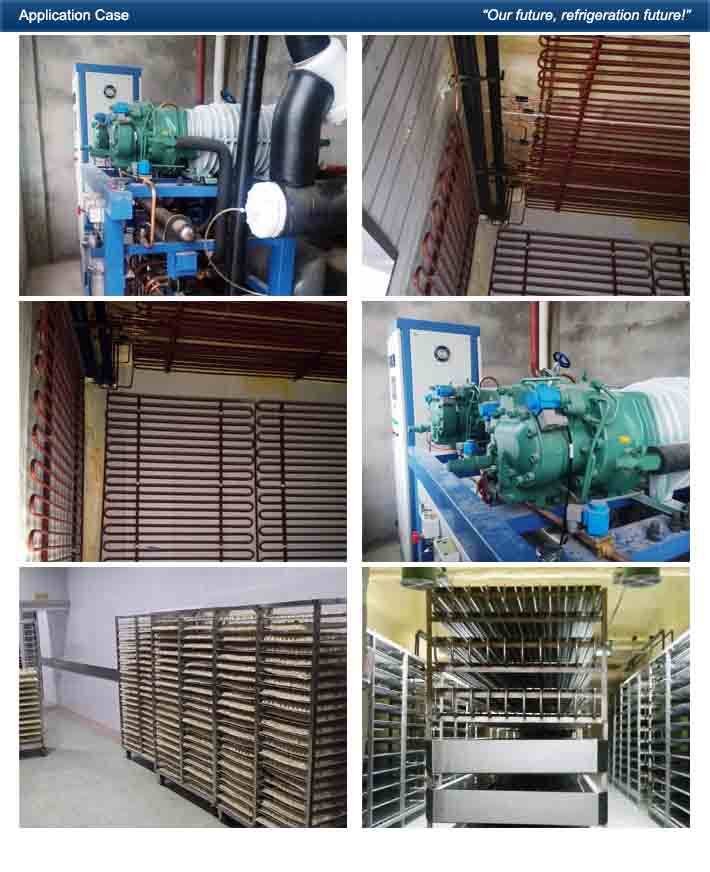

    4. Our compressor racks are widely used in fruit fresh keeping, vegetable storage and production, seed storage, etc. We hope to work with more and more refrigeration contractor to provide the best refrigeratioin solution to the world.

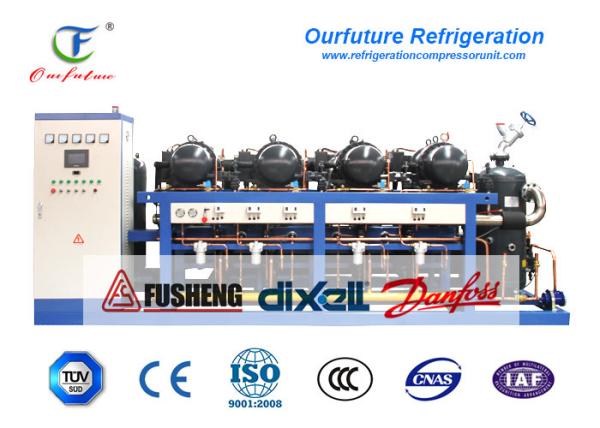

    Low Temperature Screw Type Parallel Compressor Unit Standard Configuration
    1Parallel unit components4Oil line components
    Strong metal frameOil outlet with filter barrel, with filter core
    Lifting ringOil line ball valve
    CushionOil line solenoid valve
    2Reservoir componentsOil line sight glass
    28 bar safety valveElectrical oil flow switch
    Inlet/outlet stop valve5Single compressor components
    Reservoir sight glassSuction/discharge stop valve
    Pipeline sight glassDischarge one direction stop valve
    Filter drier barrel, with filter coreCompressor shockwave cushion
    Stop valve for filter barrel outletSuction filter barrel, with filter core
    3Discharge components1st degree spray cooling system
    External oil separator(with sight glass)Oil sight glass
    oil heater6Economizer components
    Oil separator outlet stop valveEconomizer
    Oil temperature controllerECO expansion valve, ECO solenoid valve, ECO sight glass, ECO stop valve.
    Oil level controller
