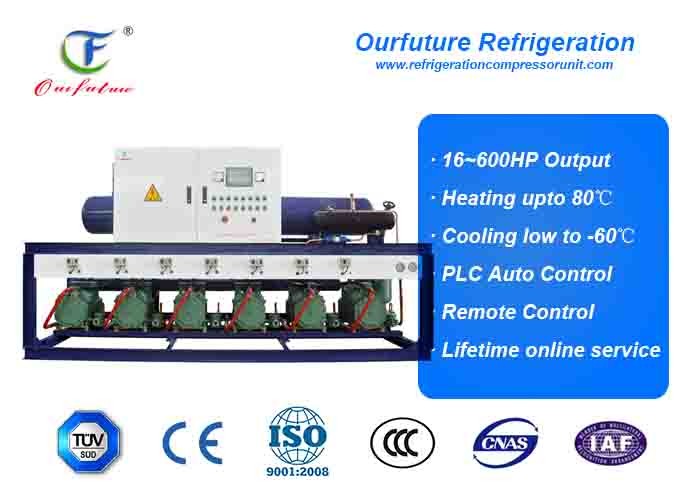

Cold Room Compressor Unit For Seed Processing with R404a 30HP*3 piston compressor

Ask Lasest Price
Brand Name :
Model Number :	OBBH3-90M
Certification :	ISO 9001:2008, CE, CCC, QS
Price :	nigotiation
Supply Ability :	100 units per month
Delivery Time :	20 days

Add to Cart

Product Details
Company Profile

Cold Room Compressor Unit For Seed Processing with R404a 30HP*3 piston compressor

We produce our compressor racks with world famous components and the world lastest technology. Each compressor rack is standardly equipped with phase loss protection, reverse phase order protection, over voltage/lack voltage protection, oil pressure protection, high/low pressure protection, motor over load protection, etc. This would enable our compressor racks to avoid frequently startup/off and provide a stable and reliable performance to end user.

Components such as compressor, reservoir, gas-liquid separator, oil separator, economizer, intake manifold, fluid supply manifold, electrical control equipment are all centralized, making sure every inch of the space is fully used.

The unit has a compact structure, the space saved during assembly can provide more space for commercial use, benefiting the end user with extra profit.

(OBBH) Rack model			2-20M	2-30M	2-40M	2-50M	2-60M		2-80M	2-100M
Evaporating temperature (℃)			10℃～-15℃
Refrigerant			R404A
Voltage			380V/50HZ
Compressor	Type		Semi hermetic piston type
	Model		4VES10	4PES15	4NES20	4HE25		4GE30	6GE40	6FE50
	Qty		2	2	2	2		2	2	2
Refrigerating capacity & power	Te. 0℃	Qo(W)	62800	87000	103000	133600		153400	222800	271200
	Te. 0℃	Pe (KW)	15.14	21.18	24.92	33.00		38.34	56.8	70.6
	Te. -5℃	Qo(W)	51600	71400	84800	111000		127400	185400	226000
	Te. -5℃	Pe (KW)	14.34	20.02	23.66	31.32		36.32	54.00	67.20
	Te. -10℃	Qo(W)	42000	58000	69200	91400		105000	153000	186600
	Te. -10℃	Pe (KW)	13.36	18.58	22.08	29.32		33.94	50.6	63.00
Connector	Air inlet (mm)		45	45	57	76		76	76	76
	Liquid outlet (mm)		19	22	22	28		35	42	42
	Air outlet (mm)		28	35	35	42		42	54	76
	Liquid inlet (mm)		22	22	28	28		35	42	42
Overall dimension	L(mm)		1442	1442	1442	1550		1550	1550	1600
	W(mm)		1100	1100	1100	1100		1100	1100	1100
	H(mm)		1800	1800	1800	1800		1800	1800	1800

(OBBH) Rack model				3-30M	3-45M	3-60M	3-75M	3-90M	3-120M	3-150M
Evaporating temperature (℃)				10℃～-15℃
Refrigerant				R404A
Voltage				380V/50HZ
Compressor	Type			Semi hermetic piston type
	Model			4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty			3	3	3	3	3	3	3
Refrigerating capacity & power	Te. 0℃		Qo(W)	94200	130500	154500	200400	230100	334200	406800
	Te. 0℃		Pe (KW)	22.71	31.77	37.38	49.50	57.51	85.20	105.9
	Te. -5℃		Qo(W)	77400	107100	127200	166500	191100	278100	339 000
	Te. -5℃		Pe (KW)	21.51	30.03	35.49	46.98	54.48	81.00	100.8
	Te. -10℃		Qo(W)	630 00	870 00	103 800	137 100	157 500	229 500	27 9900
	Te. -10℃		Pe (KW)	20.04	27.87	33.12	43.98	50.91	75.9	94.5
Connector	Air inlet (mm)			57	57	76	76	89	89	108
	Liquid outlet (mm)			22	28	28	35	42	54	54
	Air outlet (mm)			35	45	54	54	76	76	76
	Liquid inlet (mm)			28	28	35	42	42	54	54
Overall dimension		L(mm)		1972	1972	1972	2150	2150	2150	2150
		W(mm)		1100	1100	1100	1150	1150	1150	1150
		H(mm)		1800	1800	1800	1800	1800	1800	1800

Medium & high temperature piston type parallel unit

Refrigeration amount and power are set based on condensing temperature of 35℃, used for evaporation

condensation.

(OBBH) Rack model				4-40M	4-60M	4-80M	4-100M	4-120M	4-160M	4-200M
Evaporating temperature (℃)				10℃～-15℃
Refrigerant				R404A
Voltage				380V/50HZ
Compressor	Type		Semi hermetic piston type
	Model		4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty		4	4	4	4	4	4	4
Refrigerating capacity & power	Te. 0℃	Qo(W)	125600	174000	206000	267200	306800	445600	542400
	Te. 0℃	Pe (KW)	30.28	42.36	49.84	66	76.68	113.6	141.2
	Te. -5℃	Qo(W)	103200	142800	169600	222000	254800	370800	452000
	Te. -5℃	Pe (KW)	28.68	40.04	47.32	62.64	72.64	108	134.4
	Te. -10℃	Qo(W)	84000	116000	138 400	182 800	210000	306000	373 200
	Te. -10℃	Pe (KW)	26.72	37.16	44.16	58.64	67.88	101.2	126
Connector	Air inlet (mm)		57	76	76	108	108	108	125
	Liquid outlet (mm)		28	35	35	45	45	45	57
	Air outlet (mm)		45	57	76	76	76	76	76
	Liquid inlet (mm)		28	35	45	45	57	57	76
Overall dimension		L(mm)		2502	2502	2502	2850	2850	2850	2850
		W(mm)		1100	1100	1100	1150	1150	1150	1150
		H(mm)		1800	1800	1800	1800	1800	1800	1800

(OBBH) Rack model				5-50M	5-75M	5-100M	5-125M	5-150M	5-200M	5-250M
Evaporating temperature (℃)				10℃～-15℃
Refrigerant				R404A
Voltage				380V/50HZ
Compressor	Type			Semi hermetic piston type
	Model			4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty			5	5	5	5	5	5	5
Refrigerating capacity & power	Te. 0℃		Qo(W)	157000	217500	257500	334000	383500	557000	678000
	Te. 0℃		Pe (KW)	37.85	52.59	62.3	82.5	95.85	142	176.5
	Te. -5℃		Qo(W)	129000	178500	212000	277500	318500	463500	565000
	Te. -5℃		Pe (KW)	35.85	50.05	59.15	78.3	90.8	135	168
	Te. -10℃		Qo(W)	105000	145000	173000	228500	262500	382500	466500
	Te. -10℃		Pe (KW)	33.4	46.45	55.2	73.3	84.85	126.5	157.5
Connector	Air inlet (mm)			76	76	89	108	108	125	2*108
	Liquid outlet (mm)			28	35	45	45	45	57	76
	Air outlet (mm)			57	57	76	76	76	76	89
	Liquid inlet (mm)			35	45	57	57	57	76	76
Overall dimension		L(mm)		3102	3102	3102	3450	3450	3450	3450
		W(mm)		1100	1100	1100	1150	1150	1150	1150
		H(mm)		1800	1800	1800	1800	180	1800	1800

Medium & high temperature piston type parallel unit

Refrigeration amount and power are set based on condensing temperature of 35℃, used for evaporation

condensation.

(OBBH) Rack model					6-60M	6-90M	6-120M	6-150M	6-180M	6-240M	6-300M
Evaporating temperature (℃)					10℃～-15℃
Refrigerant					R404A
Voltage					380V/50HZ
Compressor	Type				Semi hermetic piston type
	Model				4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty				6	6	6	6	6	6	6
Refrigerating capacity & power		Te. 0℃		Qo(W)	188400	261000	309000	400800	460200	668400	813600
		Te. 0℃		Pe (KW)	45.42	63.54	74.76	99.00	115.02	170.4	211.8
		Te. -5℃		Qo(W)	154800	214200	254400	333000	382200	556200	678000
		Te. -5℃		Pe (KW)	43.02	60.06	70.98	93.96	108.96	162	201.6
		Te. -10℃		Qo(W)	126000	174000	207600	274200	315000	459000	559800
		Te. -10℃		Pe (KW)	40.08	55.74	66.24	87.96	101.82	151.8	189
Connector		Air inlet (mm)			76	76	76	89	108	2*108	2*125
		Liquid outlet (mm)			35	45	45	45	57	76	76
		Air outlet (mm)			57	76	76	76	89	89	108
		Liquid inlet (mm)			45	57	57	57	76	76	76
Overall dimension			L(mm)		3632	3632	3632	4050	4050	4050	4050
			W(mm)		1100	1100	1100	1150	1150	1150	1150
			H(mm)		1800	1800	1800	1800	1800	1800	1800
