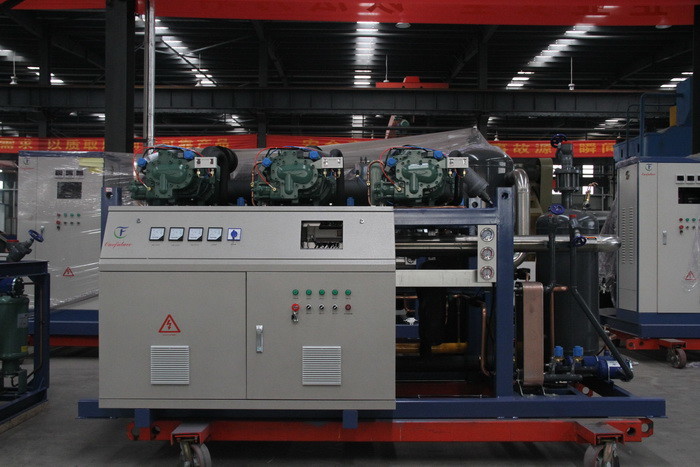

High Efficiency HSN Compressor Rack For -35degC~-40degC Fish Fast Freezing Refrigeration System.

• The units are equipped with world famous brand high quality compressor and components, following the latest design, the perfect combination provides a safe and reliable system.
• The unit comes standard with a controller that can effectively avoid turning on/off the motor frequently as well as safety protection modules including the following: Phase loss protector, Inverted sequence, overvoltage protector, undervoltage protector, oil pressure, high pressure, low pressure, motor overload.
• High efficiency oil separating system. When power is on, there is no need to add lubricating oil, the standard provided oil heater (for screw unit), oil temperature controller (for screw unit) and oil level switch (for screw unit), etc. can protect the function.
• High efficiency gas liquid separator is used, with a unique pipeline design, it can effectively minimize the possibility of liquid strike.
• The “Pressure Vessel Certificate” approved reservoir is provided as well as the safety relief valve.
• Fault isolation device is served so that when a certain compressor breaks down, the rest of the unit can keep running appropriately, making sure that client has enough time for repair and replacement.

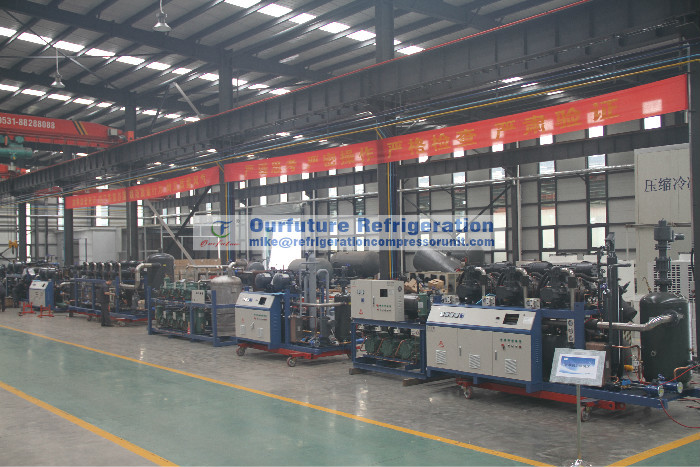

Shandong Ourfuture Energy Technology Co., Ltd produces screw type  condensing units, screw type multiple compressor parallel units, reciprocating condensing units, reciprocating parallel compressor racks, scroll type compressor box type condensing unit and scroll type parallel compressor units with best quality and favorable price.

Our compressor units/racks can be used in cold room storage, blast freezer, fast frozen tunnel, retail refrigeration, cold chain logistics, chemical and pharmarcy area, fishery and shipping industry, etc.

Our basic products include the following:
1. Single-stage reciprocating type parallel compressor racks(20HP~350HP) @7.5~45oC Tss.
2. 2-stage compressor reciprocating type parallel units(16~180HP) @-25~-65oC Tss.
3. Single-stage screw type parallel compressor racks(80~600HP) @5~45oC Tss.
4. 2-stage compressor screw type parallel compressor units(100~600HP) @-30~-65oC Tss.
5. Danfoss scroll type compressor box type condensing units and parallel compressor racks.
6. R744(CO2) cascade system compressor units.
(Refrigerant can be R744(CO2), R404a, R507, R407C, R22, etc. )

Our compressor racks and condensing units are equipped with world famous brand high quality components, we are distributor of , Carlyle, Fusheng, Bock, OEM factory of Danfoss. Key controllers and valves are Danfoss brand, contactors are Siemens brand.

We also develop and program our own PLC control system, it can automatically control the running compressor quantity according to refrigeration need so that the system can save more energy and can provide 30% more use life than single compressor condensing units. With PLC auto control graphical interface, customer can operate with read the running status, data, parameter and error alarms easily. Optional remote control communication port is also provided, so that customer can monitor in their office.

We focus on high efficiency daily mangement and QC to guarantee stable quality. By following ISO9001:2008, we have strict tracking system of each order, all welding are proformed with argon charged in the system to prevent welding waste going into the system. All condensers are delivered with high pressure gas charged when they delivered. Each final compressor rack will go through no-load test before packaging.

We welcome friends from all over the world, together let's serve the world with more environmental, efficient and cost effective refrigeration unit.

Ourfuture Refrigeration - "Our future - refrigeration future!"
