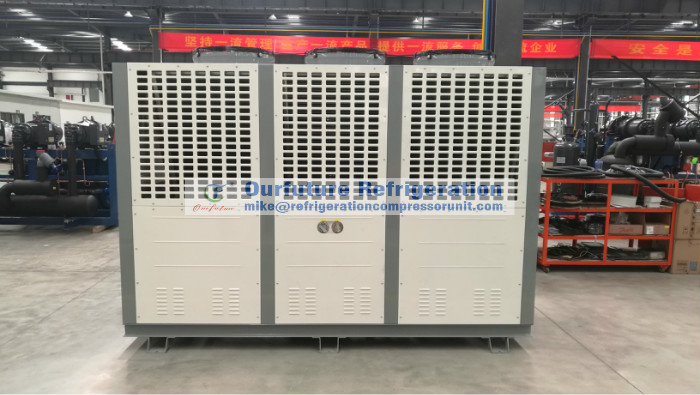

    Air Cooled Screw Chiller For Industrial Water Chiller With Screw Type Compressor, R404a

    Ask Lasest Price
    Brand Name : Ourfuture
    Model Number : OBL50M-A450
    Certification : CE, 3C, ISO9001:2008
    Price : USD 5000~10000 per unit
    Payment Terms : T/T, L/C
    Supply Ability : 100 units per month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

    Air Cooled Screw Chiller For Industrial Water Chiller With Screw Type Compressor, R404a

    Compressor rack modelOBL50M-A450
    Compressor typeScrew type
    Compressor brandFusheng
    Voltage380~420V/3/50HZ
    Rating powerKW37.5
    Condensing temperature45℃
    RefrigerantR404a
    Fan motorPowerwatt2400
    Air flowm3/h45000
    Refrigeration capacity (KW)Evaporating temperature5℃-
    0℃115.97
    -5℃95.11
    -10℃86.69
    -15℃-
    Dimension(L*W*H)mm2400×1900×2400
    Connection sizeSuctioninch76
    Liquid feedinginch28
    weightKG1000

    Compressor rack product range
    Single compressor condensing unit
    Air cooled condenserWater cooled condenserEvaporative cooled condenser
    Scroll type compressor
    Piston type compressor
    (One stage/Two stage)
    Screw type compressor
    (One stage/Two stage)
    Parallel compressor racks
    Evap. Temp.-14~10℃-15~-35℃-36~-60℃
    Scroll type compressor
    Piston type compressor
    (One stage/Two stage)
    Screw type compressor
    (One stage/Two stage)
    Available refrigeration systemFreon Direct expansion refrigeration system
    Freon Barrel pump/surge drum refrigeration system
    Brine refrigeration system (Freon/Glycol/Calcium chloride)
    CO2 as secondary refrigerant refrigeration system
    CO2 Cascade system
    Other products & service
    1. Refrigeration system design, selection and quotation.
    2. Unit cooler, plate heat exchanger, water cooling condenser, evaporative condenser, CA storage equipment, etc.
    3. PLC auto control customized programming, APP remote control.
    4. Equipment supply including refrigeration, insulation & auxilary materials.
    5. Global installation service.
    Application
    1. Fruit & vegetable precooling, storage, controlled atmosphere storage(CA storage) and freeze drying, etc.
    2. Poultry & meat exclusion, precooling, quick freezing and freezing storage, etc.
    3. Sea food (Fish & shrimp, etc) quick freezing, storage and -60℃ deep freezing storage.
    4. Chemical refrigeration.
    5. Water chiller for workshop air conditioning, poultry processing, etc.
    6. Heat pump that producing hot water for poultry feather removing, etc.
    What we don't do
    1. We don't do Ammonia related refrigeration system.
    2. Commercial air conditioner.
    3. Air compressor.
